2024-on Toyota LC Prado 250 Series 48 volt 2.8L TD MHEV 1GD-FTV - Mann Hummel Provent Catch Can Kit OS-PROV-56
$390.00

ProVent 200 catch can kit installed in Toyota LandCruiser Prado 250 engine bay (OS-PROV-56)

MANN ProVent 200 Catch Can Kit – OS-PROV-56
Suits 2024-on Toyota LandCruiser Prado 250 Series (48-Volt MHEV)
2.8L Turbo-Diesel 1GD-FTV– Right-Hand Drive (AU-spec)

**Designed for Australian models (RHD). Overseas models may have different engine-bay layouts.

Why choose the MANN+HUMMEL ProVent 200?
High-efficiency oil separation helps protect your turbocharger and intake tract by reducing oil mist and blow-by entering the manifold and EGR pathways. Expect a cleaner intake system, less oil consumption compared with basic separators or open systems, and consistent crankcase ventilation performance backed by OEM-grade engineering.

Key benefits of ProVent 200 for Prado 250 owners
• Helps keep intake manifold and intercooler cleaner for longer
• Supports stable boost and airflow by reducing oily deposits
• Minimises sludge and carbon buildup around the EGR path
• Built around the proven ProVent 200 platform with serviceable filter element

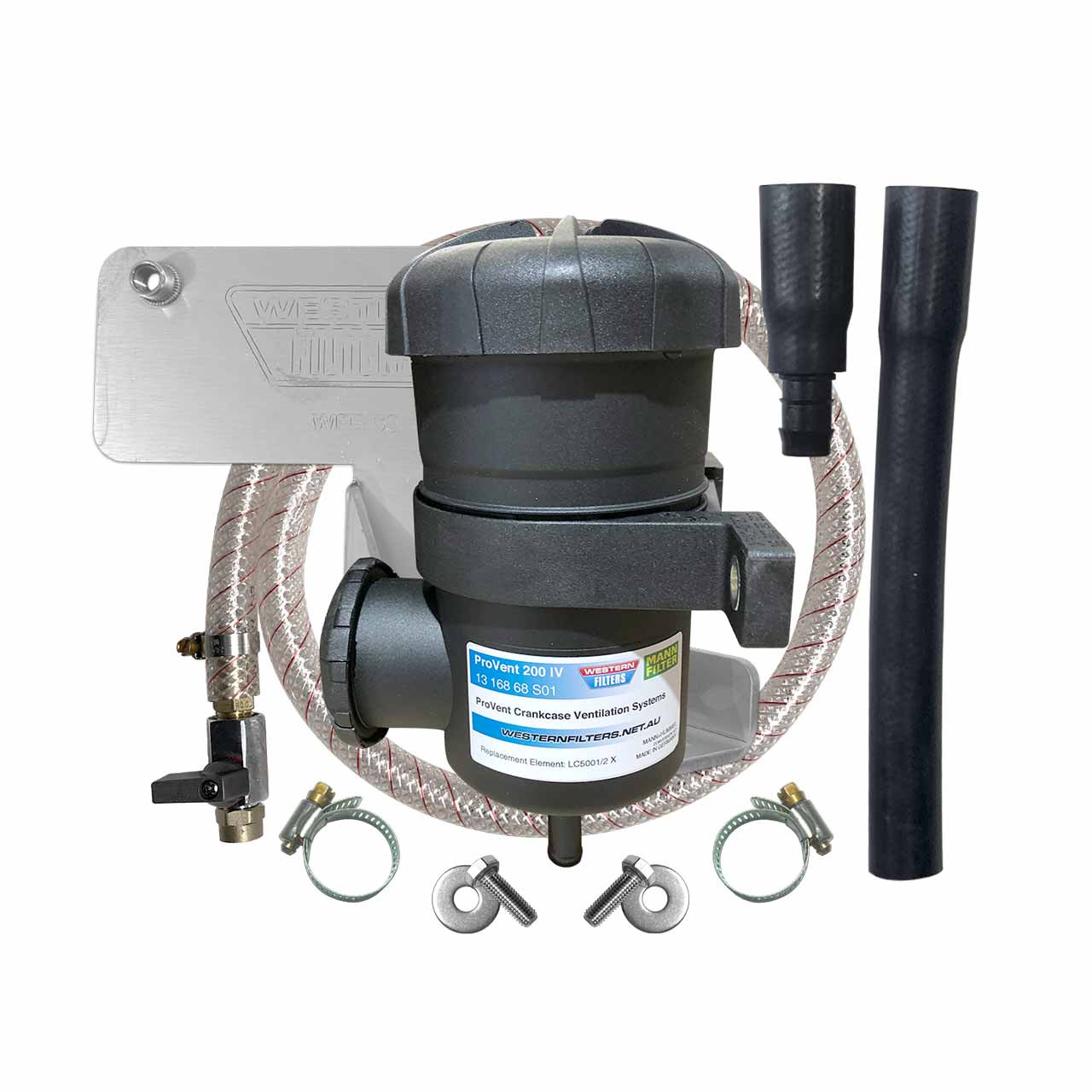

What’s in the OS-PROV-56 kit?
:: ProVent 200 unit :: Pre-formed top & bottom hoses :: Drain kit :: Installation guide

Fitment notes
• Engine: 2.8L Turbo-Diesel 1GD-FTV (48V Mild-Hybrid)
• Steering: Right-Hand Drive (Australia)
• Check any existing accessories or dual batteries for clearance before install

Maintenance
Check and drain captured oil periodically (typ. every 5,000 km; adjust for towing, short trips, or dusty conditions). Replace the ProVent filter element as required to maintain separation efficiency.

Download Installation Instructions >
ProVent 200 Fitting Accessories >

Explore related products
ProVent Catch Can Kits  |  Toyota Prado 250 Accessories

Frequently Asked Questions

Do I need to block my EGR valve if I install a ProVent 200?
No. The ProVent 200 catch can significantly reduces oil mist and contaminants entering the intake system. With cleaner airflow, many owners find there is no need to block or modify the EGR valve, as oily residue is greatly reduced.

How often should I drain the ProVent 200?
Drain intervals vary depending on driving style and conditions. On average, check the drain every 5,000 km. Heavy towing or dusty environments may require more frequent checks.

Will the ProVent 200 fit left-hand-drive Prado 250 models?
This kit (OS-PROV-56) is engineered for Australian right-hand-drive models. Overseas left-hand-drive versions may differ in engine bay layout, so fitment cannot be guaranteed.

Does fitting a ProVent 200 affect vehicle warranty?
The ProVent 200 is an add-on filtration device designed to protect your engine. In most cases it does not affect manufacturer warranty, but we recommend confirming with your dealer.

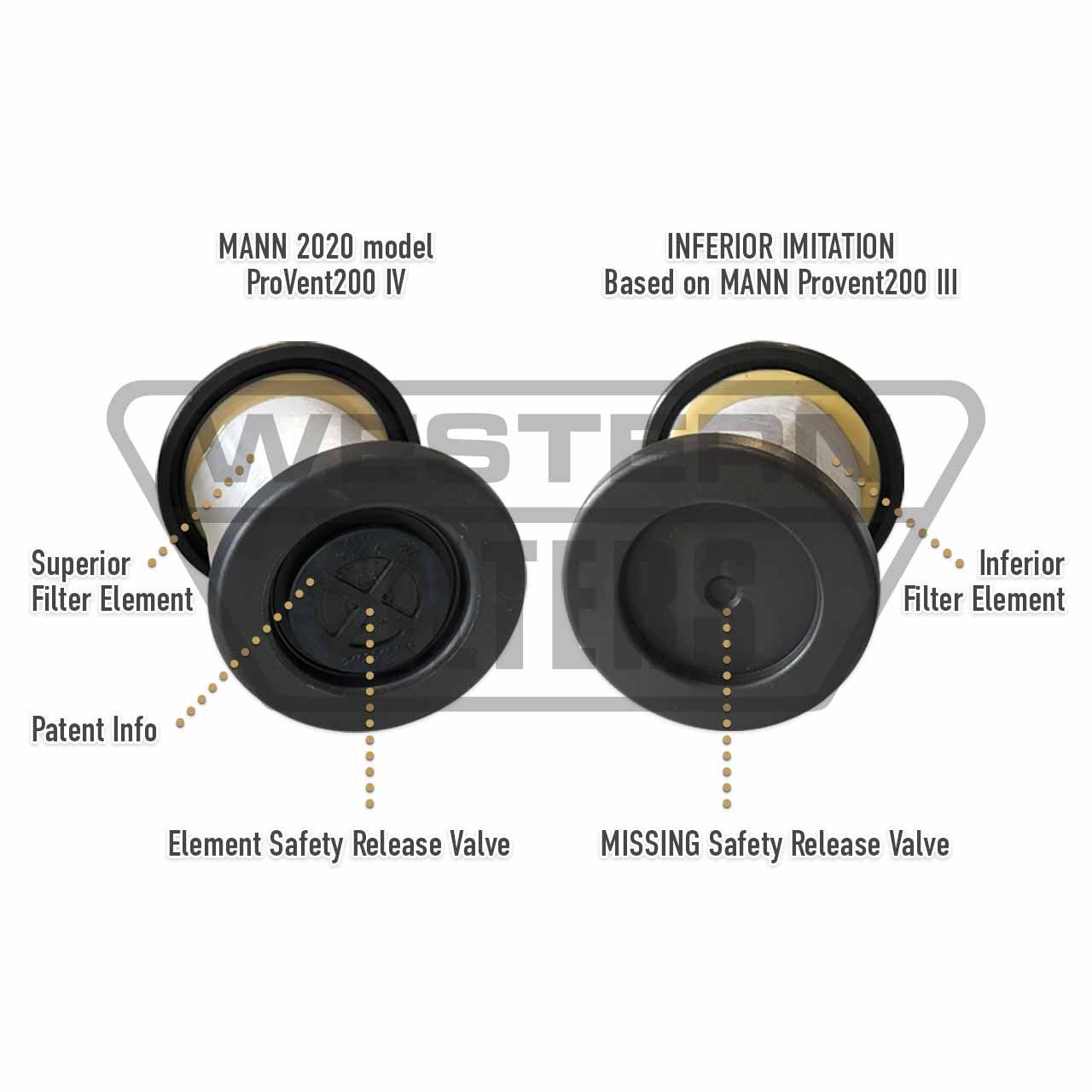

How does the ProVent 200 compare to cheaper catch cans?
The MANN+HUMMEL ProVent 200 offers high-efficiency oil separation, pressure regulation, and OEM-quality components. Cheaper alternatives may lack proper filtration, leading to reduced protection and higher oil consumption.

Please Note: We are based in Australia.
For International Customers, please email us for a Freight Quote.
Online Sales: jason@westernfilters.com.au

If unsure of the part's Vehicle Application & Fitment:
Find Your 'Vehicle' using our Parts Finder / REGO Search Widget
Click this LINK: Find My Vehicle/ REGO Search

  • Toyota Prado 250 Catch can kit
    5

    Posted by Richard P on 6 / 9 / 2025

    Poor man always buy’s twice, went online bought the look alike cheap version.
    After a bit of good advice about how important a properly engineered catch can is , I ordered the Western filters kit . When comparing both items side by side it was easy to see why the Provent catch can are leaders in the market . The bottom line I know that the Provent filter is quality engineered to a very high standard helping to protect my engine .
