H002044 Donaldson Pre-Cleaner - Inlet: 4.50

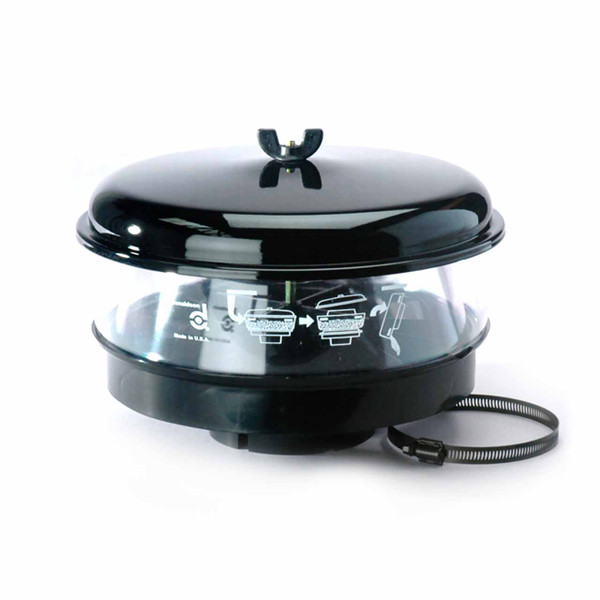

Donaldson 4.5" 'Hi-Flow' Full View Pre-Cleaner
Before replacing your Full-View Pre-Cleaner, consider upgrading to TopSpin (H002432)
This unit clamps straight onto a 114mm o.d. pipe or 4.5" !
The overall diameter of this unit is 306mm, height
is 208mm, with a maximum air flow of 700 CFM.
Replacement Lid: P02-0345
Replacement bowl: P02-0344
Donaldson offers a range of intake system accessories specifically designed to solve specific problems - such as excessive moisture or noise - or to simply help maintain the overall system. Donaldson Full-view Pre-cleaner helps extend filter life on agricultural & construction equipment.
Heavy Duty Model H002044 Specifications:
(A) 4.50"/114mm (B) 12.06"/306mm (C) 8.19"/208mm
(D) 2.00"/51mm (E) 11.94"/303mm (Weight) 4.5lbs/2.04kg
Features:
• Centrifugal force in bowl separates up to 75% of incoming dust before it enters the engine • Low maintenance! • Durable, lightweight, non-corrosive construction • Full-view plastic bowl lets operator easily see when service is needed • One-bolt cover retention for service when dirt reaches the level of the arrow, remove top nut and plastic body then empty no tools required • Mounting clamp included
Recommended mounting: on top of the engine intake stack
