Direction-Plus PreLine Kit for Isuzu D-Max Mazda BT50 4JJ3-TCX 2020-on PL645DPK

Direction-Plus PreLine Kit for Isuzu D-Max Mazda BT50 4JJ3-TCX 2020-on PL645DPK

(No reviews yet) Write a Review

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$137.50 AUD fortnightly

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments

5.00 KGS
Calculated at Checkout

Mann PreLine 150

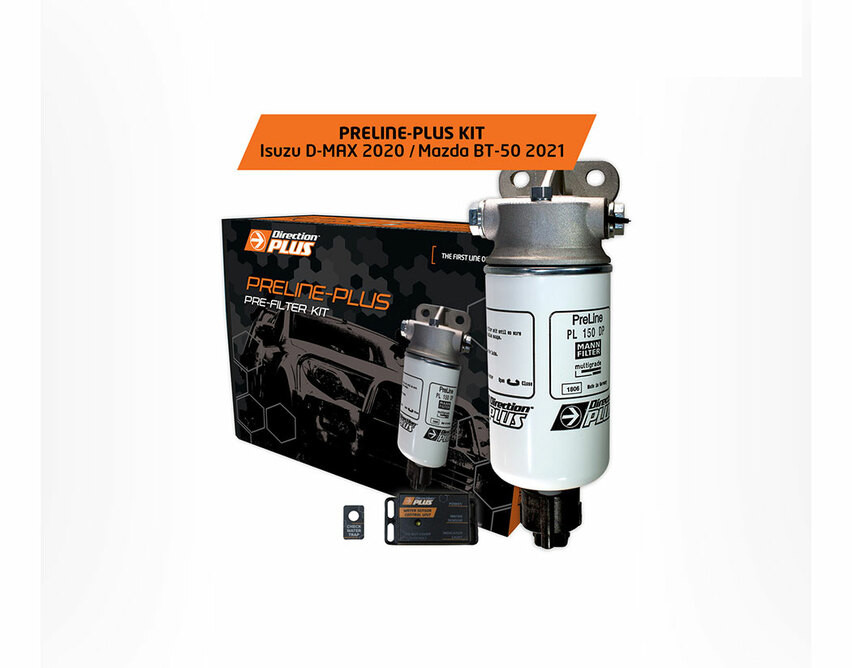

Direction-Plus PreLine-Plus Diesel Prefilter Kit PL645DPK suits:
IsuzuD-Max 3.0L TD (07/20-on) TFS
Turbo Diesel 4Cyl 4JJ3-TCX DI DOHC 16V
Mazda BT-50 3.0L TD (08/20-on) TF
Turbo Diesel 4Cyl 4JJ3-TCX DI DOHC 16V

Direction-Plus PreLine-Plus PL645DPK is an innovative pre-filter system for diesel fuel which suits Isuzu D-MAX 2020 and Mazda BT-50 2021. PreLine-Plus pre-filter system is designed specifically to cope with extreme weather conditions and poor fuel quality ensuring a high degree of water separation and particle pre-separation. With a 100% water separation efficiency rating (based on 300um droplet size) and a long service life, meeting the specifications set by leading manufacturers of diesel fuel injection systems, this PreLine-Plus pre-filter kit will reliably protect your fuel system from corrosion, abrasion and the frequency of repairs reduced.

Water Alert System
The PreLine-Plus kit includes an intuitive multi-stage water alert that separates it from other kits on the market. The alarm will notify the driver in the event that water is detected in the fuel which also eliminates the need to manually check for water.

Specifics: Weight: 5kg / Dimensions: 37cm x 27cm x 16cm

MANN+HUMMEL PreLine Prefilter Series:

Reduces the contamination level of fuel already upstream of the pre-feed pump in the low pressure circuit. In addition, the Multigrade F filter media separate more than 93 percent of any water in the fuel and therefore meet the requirements of leading manufacturers of injection systems. The perfect interaction between the PreLine prefilter and the MANN+HUMMEL main filter offers maximum protection for the sensitive injection system and contributes to the economic running of your engine. Main Features & Advantages: For use with diesel fuel DIN ISO 590 (5% FAME) DIN 51 628 (7% FAME) kerosene JET-A1 :: For volume flow rates up to 150 l/h :: Use of ‘multigrade high performance’ media :: 93% water separation :: Modular system for excellent flexibility :: Easy handling during servicing :: Integrated and effective hand pump with 45° position to drain off water and for priming during service :: Integrated water collector :: Parallel operation possible with a number of systems

PreLine 150 Specifications:
Comes with a Single Head offering variable connection possibilities Robust design in different sizes Designed for easy servicing Spin-on filter.
Head Connection Thread: M16 x 1.5
Head Length: 163mm / Head Outr.Diam: 76mm
Spin-on Filter: PL 150 / Nominal Flow Rate: 150
Water Separation: >93%
Operating Pressure: 4
Dimensions: 98 x 102 x 247mm

For additional Information: MANN PreLine 150 >
