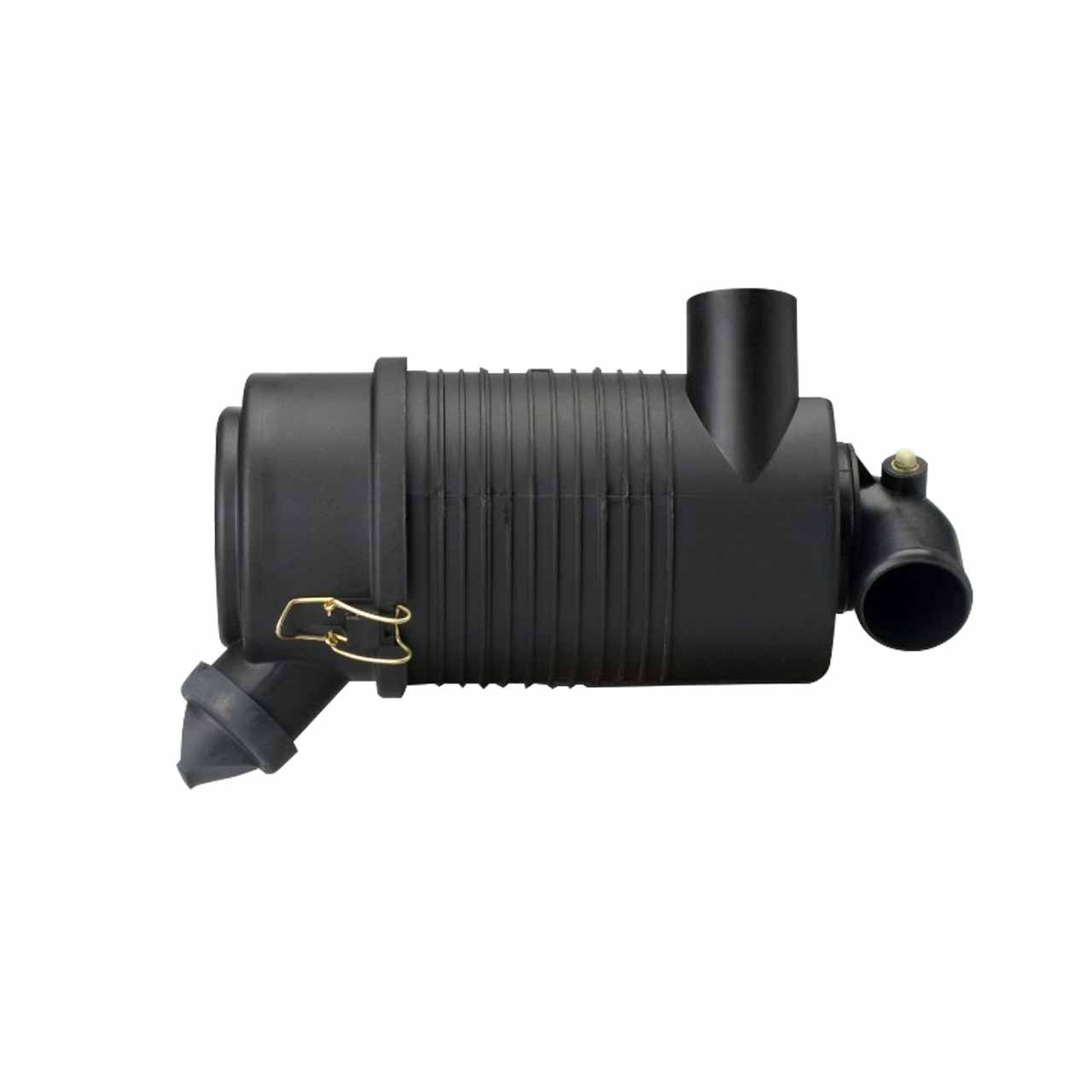

FPG Air Cleaner 5" 90 Degree Outlet G057514 Donaldson

$224.00

Donlaldson FPG Air Cleaner RadialSeal
G057514: 5" Polymer Body 90 Degree Outlet

Ideal for compressors and generator sets, construction and in-plant vehicles, On-and off-highway vehicles, also suitable for Marine and offshore equipment

The FPG Air Cleaner series is a two-stage engine air cleaner operating in medium to heavy dust conditions. The FPG series offers improved reliability and durability with reduced weight and costs. Because they are made of injection molded high-strength plastic, FPG air cleaners offer the flexibility to overcome space limitations for underhood air cleaners. The filter inside the air cleaner is also quite different from the traditional design: one-piece molded urethane endcaps encase the ends of the media and filter liners, eliminating the metal caps and plastisol potting compound that were traditionally used. Despite its compact size, the FPG Air Cleaner offers complete engine air protection — removing 99.9% of the dust and dirt particulate that enters the engine airstream.

Relevant Part Numbers:
Air Cleaner's Outer Filter: P82-1575
Optional Inner Filter: P82-2858
Mounting Band Required (Sold Separately):
P777730 (Plastic) or H008443 (Metal)

Specifications:
Diameter Straight Outlet: 2" in and out.
Rated Flow LR: 80 CFM Restriction LR: 6.00 " H2O
Rated Flow MR: 95 CFM Restriction MR: 8.00 " H2O
Rated Flow HR: 105 CFM Restriction HR: 10.00 " H2O
Outlet Diameter: 51mm
Body Diameter: 146mm
Inlet Diameter: 51mm
Inlet Location: 42mm
Inlet Length: 97mm
Outlet Length: 35mm
Housing Length : 276mm

Provides up to 346 cfm airflow per air cleaner - double throughput by using two units (see chart below). To calculate your engine's CFM multiply Horsepower x 2.5.

CFM Comparison Table
