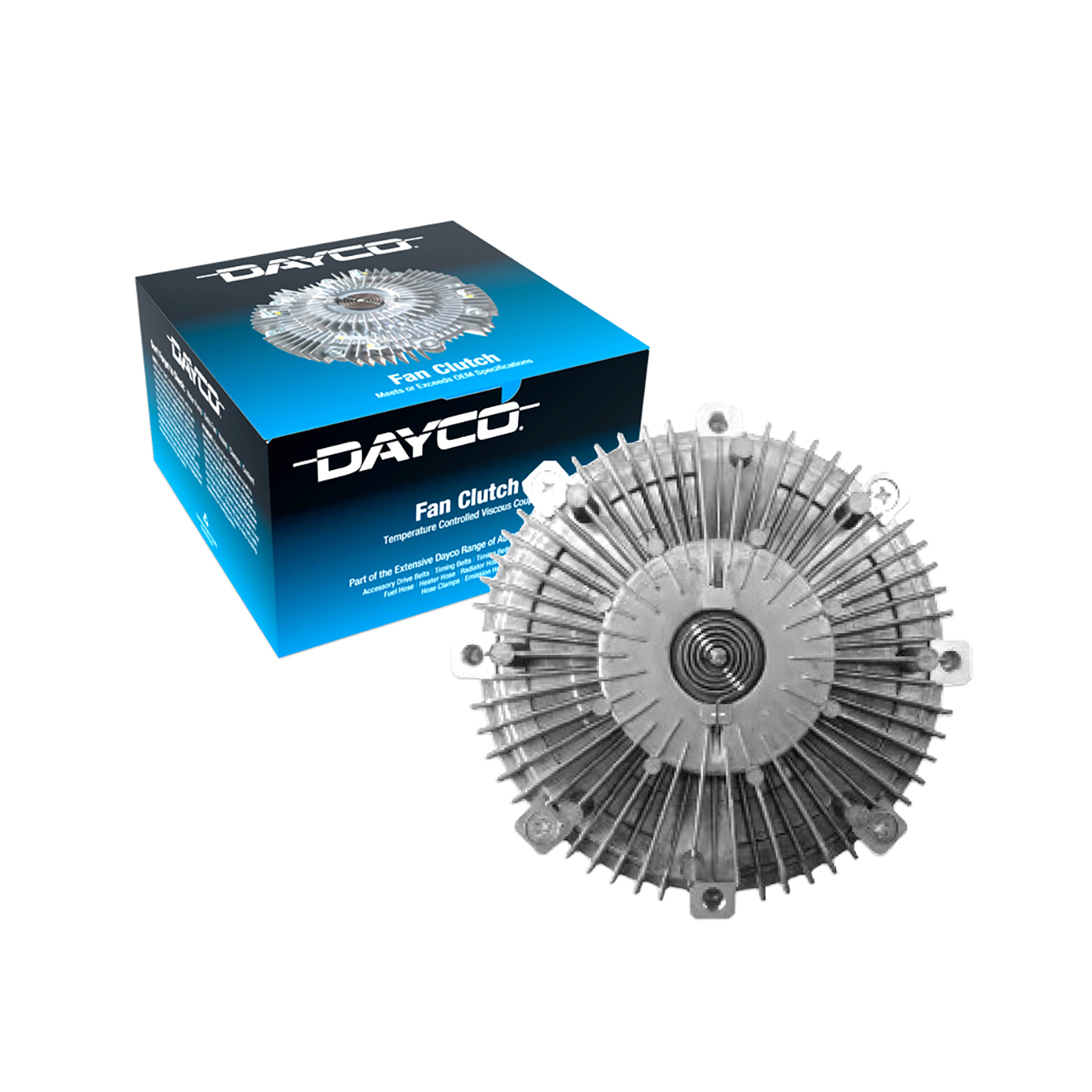

115823 Isuzu D-Max TF MU-X UC 4JJ1-TCX / TC Holden Colorado RC 4JJ1TC 3L - Dayco Fan Clutch

No reviews yet Write a Review
MSRP: $259.00
$259.00
$220.15
(You save $38.85

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$55.04 AUD fortnightly
MORE INFO

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO


SKU:
115823
UPC:
9325361320347
Condition:
New
Weight:
2.20 KGS
Shipping:
Calculated at Checkout

115823 Isuzu D-Max TF MU-X UC 4JJ1-TCX / TC Holden Colorado RC 4JJ1TC 3L - Dayco Fan Clutch

MSRP: $259.00
$259.00
$220.15
(You save $38.85

Dayco Fan Clutch 15823 Suits:

Isuzu D-MAX Jun2012-20 3.0L TF 130kW 4JJ1-TCX / TC
4Cyl. 16V DOHC CRD Turbo Diesel
Isuzu MU-X Nov2013-on 3.0L UC 130kW 4JJ1-TC
4Cyl. 16V DOHC DTFI Turbo Diesel
Isuzu D-MAX Jun2012-20 2.5L TF 120kW 4JK1E5
4Cyl. 16V DOHC CRD Turbo Diesel
Isuzu D-MAX Oct2008-May2012 3.0L TF 120kW 4JJ1-TC
4Cyl. 16V DOHC CRD Turbo Diesel

Holden Colorado 2008-2012 3.0L RC 120kW 4JJ1TC
4Cyl. 16V DOHC Turbo Diesel

Dimensions:
Overall height:  92mm
Pilot hole: 32mm
Fan blade bolt: 177mm
Shaft bolt center distance: 60mm
Outside diameter: 192mm

Dayco
Dayco is recognised by both OEM'S and the automotive aftermarket as an innovative, technology driven organisation. Dayco continues to be guided by the 108 year old primary business strategy to anticipate and satisfy the needs of our customers by providing timely, quality products & services. Dayco Fan Clutches are die-cast aluminium and have a machined body that helps to provide for a tight fit within close tolerances, while producing precision performance. Deep fins increase surface area for improved heat dissipation, while exclusive drive spines are knurled and burnished. The shaft surface resists slippage caused by heavy torque loads and assures longer bearing life. Top-quality bearings ensure longer life and quiet, smooth running. A special silicone fluid inhibits heat build-up to prolong service life. A bi-metal thermostatic spring adjusts the fan speed in response to operating temperature requirements - reducing fuel consumption.

On engines with belt-driven cooling fans, a fan clutch is often used to save energy and reduce noise. The fan clutch disengages slows or disengages the engine's cooling fan when extra cooling isn't needed. The fan pulls air through the radiator and air conditioning condenser when the vehicle isn't moving fast enough to provide adequate airflow for cooling. A fan can eat up anywhere from a couple of horsepower up to 12 or 15 hp on a big V8, so by reducing the parasitic horsepower loss on the engine the fan clutch makes a noticeable difference in fuel economy.

If unsure of the part's Vehicle Application & Fitment:
Find Your Vehicle using our Parts Finder / REGO Search Widget
Click this LINK: Find My Vehicle/ REGO Search
