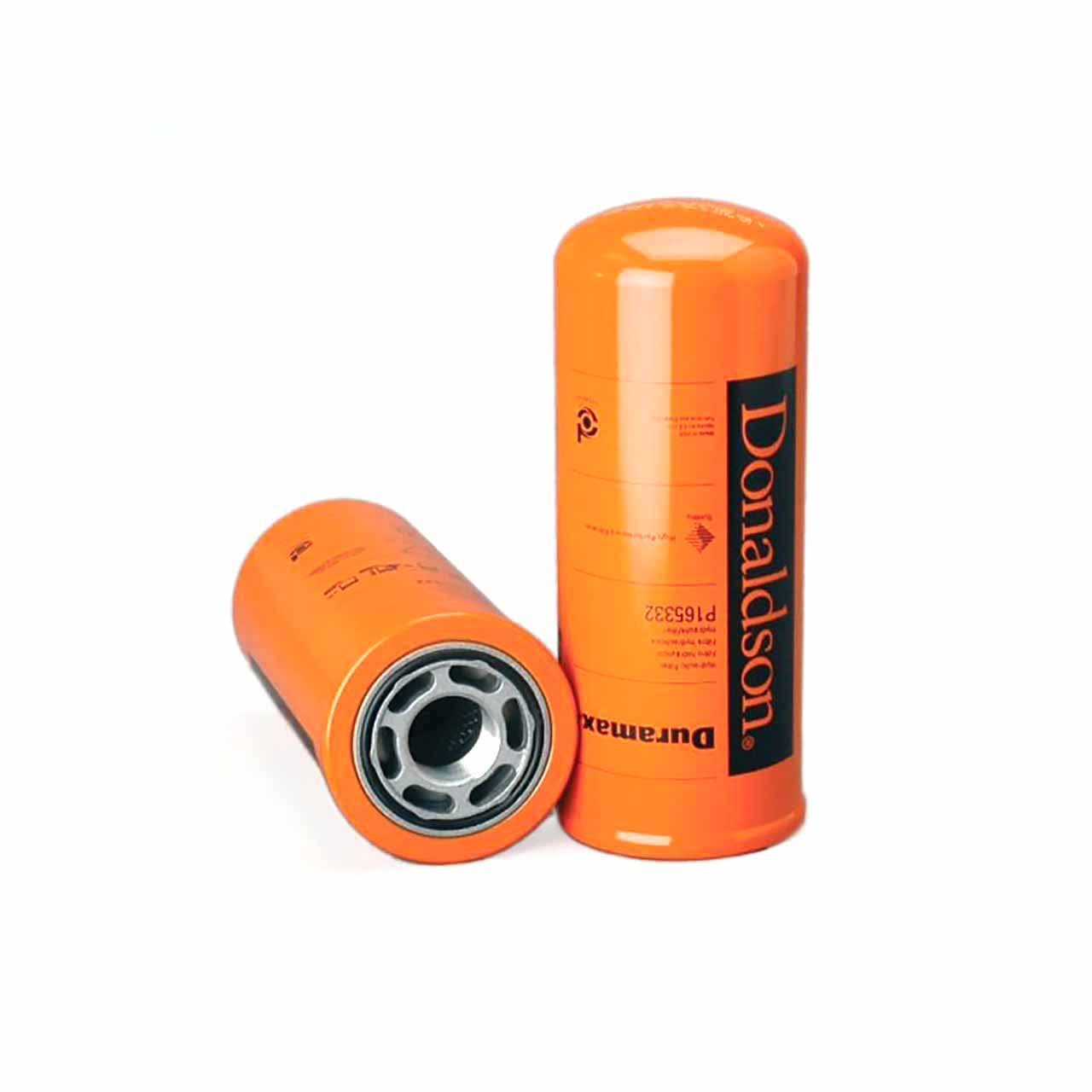

P165332 Donaldson Hydraulic Filter Spin-On for Caterpillar Machinery & Equipment

1 reviews Write a Review
MSRP: $126.00
$126.00
$107.10
(You save $18.90

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$26.77 AUD fortnightly
MORE INFO

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO


SKU:
P165332
UPC:
742330017210
Condition:
New
Weight:
1.50 KGS
Shipping:
Calculated at Checkout

P165332 Donaldson Hydraulic Filter Spin-On for Caterpillar Machinery & Equipment

MSRP: $126.00
$126.00
$107.10
(You save $18.90

P165332 Donaldson Hydraulic Filter Spin-On for:
Caterpillar Machinery & Equipment
Caterpillar Grader 140 160 Skid Steer Loader 200 Dump
Truck 700 Dozer Wheeled 800 Loader Wheeled 900

Fits Donaldson HMK04 Assembly

Cross Reference:
Caterpillar 1022822, 1022828, 3321871, 3I1906, 3I1918, 4656502, 4656504
Case IH 84516422 / Ditch Witch 149854 / Freightliner DNP165332 / Gehl P219910
JCB 58118020 / John Deere RE39390 / New Holland 87010592 / Vermeer 296298342

Specifications:
Outer Diameter: 97mm (3.82")
Thread Size: 1 3/8-12 UN
Length: 239.78mm (9.44")
Gasket: OD: 70mm (2.76")
Gasket: ID: 63mm (2.48")
Efficiency Beta 2: 4 micron
Efficiency Beta 1000: 6 micron
Efficiency Test Std ISO: 16889
Style: Spin-On
Series: HMK04/24
Brand: Duramax
Media Type: Synteq XP

Package Dimensions:
Gross Length 4.1" (10.4cm)
Gross Width 4" (10.2cm)
Gross Height 9.8" (24.9cm)
Gross Weight 2.7lb (1.22kg)

Donaldson Hydraulic Filters
Donaldson have the right filters, contamination control products and capabilities to protect machinery and components in hundreds of applications – in the factory and on heavy-duty equipment. When you need hydraulic filtration, turn to Donaldson. We offer a complete line of filters and cartridges for low, medium and high pressure applications. Each is also available in a range of media efficiencies to meet specific application requirements.
