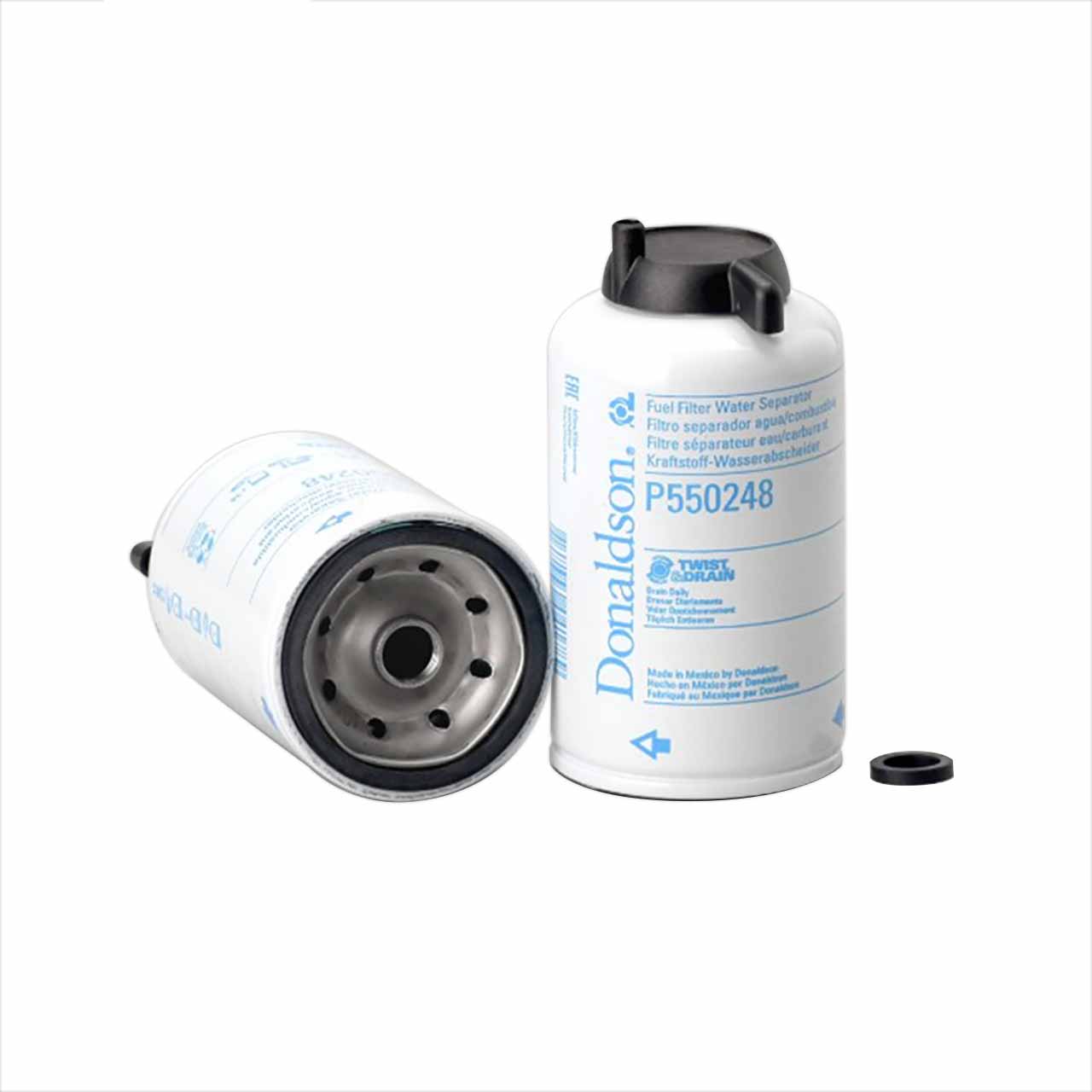

P550248 Donaldson Fuel Filter Water Separator Spin-On For Cummins & Komatsu Engines 3903202

P550248 Donaldson Fuel Filter Water Separator Spin-On For Cummins & Komatsu Engines 3903202

(No reviews yet) Write a Review

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$12.00 AUD fortnightly

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments

0.44 KGS
Calculated at Checkout
Size Chart

P550248 Donaldson Fuel Filter Water Separator Spin-On Twist&Drain
Cummins & Komatsu Engines 3903202
Bus Dump Truck Tractor Loader Excavator
Loader Combine Compactor Tractor Trencher
Skid Steer Loader Wheeled Backhoe Paver
Agricultural & Drilling Equipment Power Unit

Cross Reference:
Cummins 3903202, 1492827, 3286503, 3831062,
3843760, 3903202, 3931062, 3931064, AX1004559
Blaw Knox 0016482200, 9014100200
Case IH 114545A1, 71104220, 84171692, 84299977,
86990957, J286503, J843760, J903202, J931062
DAF 0490160, 490160, CBU1177, CBU1920
ERF 2011055, C3903202
Ford 3843760, 9576P550248, F3HZ9365C, F3HZ9365E
Freightliner DNP550248 / GRADALL 77383303
Ingersoll Rand 59477570 / Kenworth 3903202
John Deere F121868, F433395
Komatsu 1240619H1, 1240619H2, 20701K1230,
6732716310, 6733719110, CUFS1251
Leyland-DAF (LDV) CBU1177, CBU1920, CVU1177
New Holland 71104220, 73175965, 76194582,
86555246, 87803264, L86990957
Vermeer 237490003, 2374900031

Stand Pipe Yes Y/N
Outer Diameter 77.1mm (3.04 inch)
Thread Size M16 x 1.5
Length 147.6mm (5.81 inch)
Gasket OD 72cmm (2.76 inch)
Gasket ID 60.5mm (2.38 inch)
Efficiency 99% 15 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 90 Percent
Collapse Burst 5.5 bar (80 psi)
Type Water Separator
Style Spin-On
Brand Twist&Drain
Primary Application , 3903202
Notes Not for Marine Applications

Packaged Dimensions:
Gross Length 3.05" (7.7cm)
Gross Width 3.15" (8cm)
Gross Height 5.95" (12.7cm)
Gross Weight 0.965lb (0.44kg)

Donaldson Fuel Filters
Donaldson Diesel Fuel Filters are uniquely designed to protect injectors and pumps and keep engines and heavy-duty Equipment running smoothly. Today‘s diesel engines need to maintain high performance levels to remain compliant with stringent emissions regulations. Fuel filtration plays a key role, with current high presSure common rail fuel injectors operating at pressures up to 2,000 - 3,100 bar / 30,000 - 45,000 psi. Clean fuel helps minimize expensive repairs and unplanned downtime. Donaldson offer fuel filtration products to protect your fuel systems – including injectors, pumps and engines. We offer a complete line of Fuel Filters for popular on and off-road applications. Spin-Ons and Cartridges are available in a wide range of filter medias.
