PL615DPK Toyota Landcruiser 200 Series 4.5L 1VD-FTV - Mann Direction-Plus PreLine Pre-Filter Kit
Direction-Plus
Make 4x interest-free
payments of
$123.75 AUD
fortnightly
MORE INFO
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO
- SKU:
- PL615DPK
- Condition:
- New
- Weight:
- 3.50 KGS
- Shipping:
- Calculated at Checkout
Mann PreLine 150

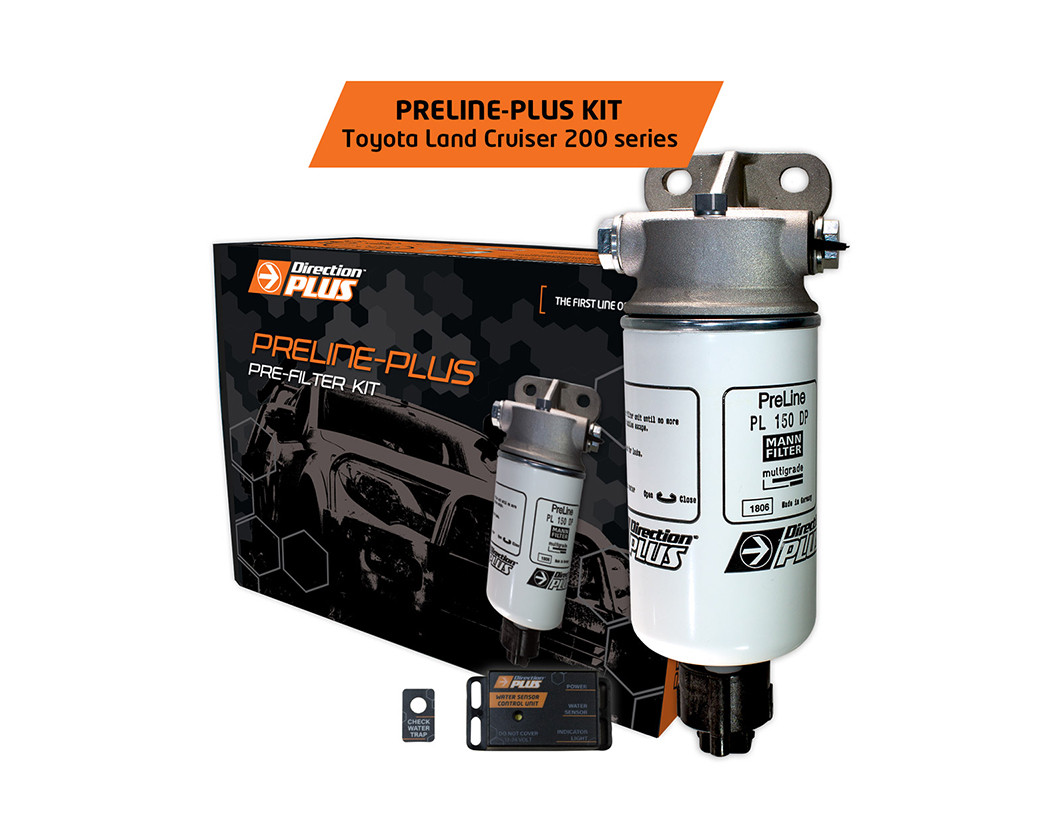

Direction-Plus PreLine-Plus Diesel Prefilter Kit PL615DPK suits:
Toyota Landcruiser 200 Series 4.5L 1VD-FTV
Direction-Plus PreLine-Plus Pre-Filter Kit PL615DPK fits Toyota Land Cruiser 200 models. It is an innovative pre-filter system for diesel fuel systems which ensures 100% of water (based on 300um droplet size) and 98% particle pre-separation (based on 30micron particles). Designed specifically to cope with extreme weather conditions and poor fuel quality, it is the perfect choice for drivers in Australia.
Specifics: Weight: 5kg / Dimensions: 37l ×27w ×16h cm
MANN+HUMMEL PreLine Prefilter Series:
Reduces the contamination level of fuel already upstream of the pre-feed pump in the low pressure circuit. In addition, the Multigrade F filter media separate more than 93 percent of any water in the fuel and therefore meet the requirements of leading manufacturers of injection systems. The perfect interaction between the PreLine prefilter and the MANN+HUMMEL main filter offers maximum protection for the sensitive injection system and contributes to the economic running of your engine. Main Features & Advantages: For use with diesel fuel DIN ISO 590 (5% FAME) DIN 51 628 (7% FAME) kerosene JET-A1 :: For volume flow rates up to 150 l/h :: Use of ‘multigrade high performance’ media :: 93% water separation :: Modular system for excellent flexibility :: Easy handling during servicing :: Integrated and effective hand pump with 45° position to drain off water and for priming during service :: Integrated water collector :: Parallel operation possible with a number of systems
PreLine 150 Specifications:
Comes with a Single Head offering variable connection possibilities Robust design in different sizes Designed for easy servicing Spin-on filter.
Head Connection Thread: M16 x 1.5
Head Length: 163mm / Head Outr.Diam: 76mm
Spin-on Filter: PL 150 / Nominal Flow Rate: 150
Water Separation: >93%
Operating Pressure: 4
Dimensions: 98 x 102 x 247mm
For additional Information: MANN PreLine 150 >
