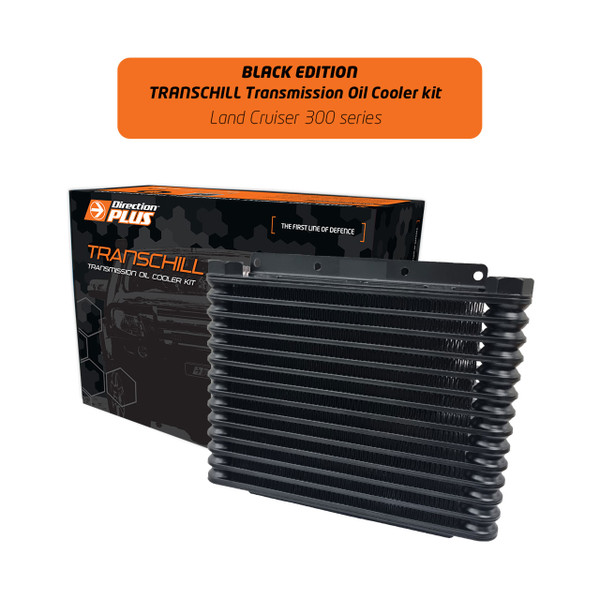

TCB635DPK Direction Plus TransChill Transmission Cooler Kit for
Toyota Landcruiser 3.3L V6 (2022-on) (LC300) FJA300R Turbo Diesel F33A-FTV CRD DOHC 24V
Benefits of the 32mm TransChill Transmission Oil Cooler:
An effective and economical way to keep the transmission at its optimum operating temperature.
High efficiency turbulators in each tube direct the fluid for superior heat transfer.
The unique 32mm plate and fin design allows for extreme cooling whilst the compact design is perfect for vehicle specific mounting.
- Thicker cooler which holds 500ml of ATF (previous 120ml)
- More efficient than the 19mm (by approx. 50%)
- M16 fittings which allow for a better/flexible fitment and less chance of kinking hoses etc.
- They are still an alloy core but powder coated black. Better against oxidisation.
- The brackets are now 4mm alloy (see attached). They were stainless on the 19mm kits.
- There are other players in the market using the 19mm core, so this provides us with a point of difference
- 3yr warranty and still made by Davies Craig
Why Do You Need One?
Due to the extreme heat generated in an automatic transmission, an auxiliary oil cooler is an economical and efficient way to help protect against costly transmission repairs.
Automatic Transmission Fluid (ATF) cools, lubricates and cleans internal transmission components. When transmission components exceed 93°C (200°F) the performance of ATF is seriously compromised.
Subsequently the life span of the ATF, seals and internal components of the transmission are significantly reduced. Higher internal temperatures also increase the wear rate of the friction and clutch plates.
How It Works
The Direction-Plus™ Transmission Cooler Kit can reduce the temperature of the ATF by as much as 33°C and assist maintaining acceptable operating temperatures. A reduction of just 11°C that can double the life expectancy of the transmission, ATF and all internal components.
Automatice Transmission Kit Contents:
Vehicle specific laser cut 4mm 5005-H34 aluminum mounting brackets
All mounting hardware included
ATF Hose (Meets or exceeds SAE J1019 requirements)
1x Davies Craig Black 32mm 14 row oil cooler
