WF Filter Kit for Servicing Hitachi EX50U Excavator

No reviews yet Write a Review
$233.00

Afterpay Terms & Conditions
Make 4x interest-free
payments of
$58.25 AUD fortnightly
MORE INFO

ZipPay Terms & Conditions
Spend up to $1000.
Weekly, Fortnightly
or Monthly Repayments
MORE INFO


SKU:
WFK140
Condition:
New
Weight:
1.60 KGS
Shipping:
Calculated at Checkout

WF Filter Kit for Servicing Hitachi EX50U Excavator

$233.00

WF Filter Kit for Servicing:
Hitachi EX50U Excavator

All items are brand new in box and are covered by warranty for workmanship and will not void the original manufacturer's warranty. Great for high performance or just as an upgrade !

Kit WFK140 Includes:

P550162 Oil Lube Filter, Spin-on Full Flow
Cross reference: Kubota 70000-15241
Transicold 2535206 | Yanmar 124450-35100
Outer Diameter 81mm (3.19 inch)
Thread Size M20 x 1.5
Length 86mm (3.39 inch)
Gasket OD 64mm (2.52 inch)
Gasket ID 54mm (2.13 inch)
Efficiency 99% 39 micron
Efficiency Test Std ISO 16889
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 0.8 bar (12 psi)
Bypass Valve Setting HR 1 bar (15 psi)
Collapse Burst 6.9 bar (100 psi)
Type Full-Flow
Style Spin-On

P502166 Fuel Filter Cartridge
Cross reference:
John Deere CH10479; Komatsu YM12455055700;
Kubota 16271-43560; Yanmar 124550-55700
Outer Diameter 35mm (1.38 inch)
Inner Diameter 11.5mm (0.45 inch)
Length 87.5mm (3.44 inch)
Efficiency 50% 16 micron
Efficiency Test Std JIS D 1611
Collapse Burst 6.9 bar (100 psi)
Style Cartridge
Media Type Cellulose

PF9873 Fuel Strainer
Cross reference:
Hitachi 8972133810 | John Deere 8972133810
O.D: 1 7/16 (36.5) | Length: 1 15/16 (49.2)
I.D: 15/32 (11.9) One End
O. Ring: 1x Attached, 1x Included
UPC: 791440090996

H-2717 Hydraulic Oil Filter
Model: Cartridge
H1: 211.00mm | H2: 180.00mm
OD1: 90.00mm | OD2: 41.50mm
ID141.50 | T1 (mm)1 1/4"X13 BSPT

P502508 Hydraulic Filter, Cartridge
Cross reference: Hitachi 4294130 | John Deere 4294130
Outer Diam: 42mm (1.65 inch)
Inner Diam: 23mm (0.91 inch)
Length: 52mm (2.05 inch)
Efficiency Beta 2: 17 micron
Efficiency Beta 75: 39 micron
Efficiency Test Std: ISO 4548-12
Collapse Burst: 6.9 bar (100 psi)
Style: Cartridge
Media Type: Cellulose

P775687 Air Filter, Primary Round with Fins
Replaces: J.C. Bamford KAP0482
Outer Diam: 104mm (4.09 inch)
Inner Diam: 63mm (2.48 inch)
Length: 254mm (10.00 inch)
Overall Length: 266.7mm (10.50 inch)
Bolt Hole Diam: 16.8mm (0.66 inch)
Efficiency: 99.9
Efficiency Test Std: ISO 5011
Type: Primary
Style: Round
Media Type: Cellulose

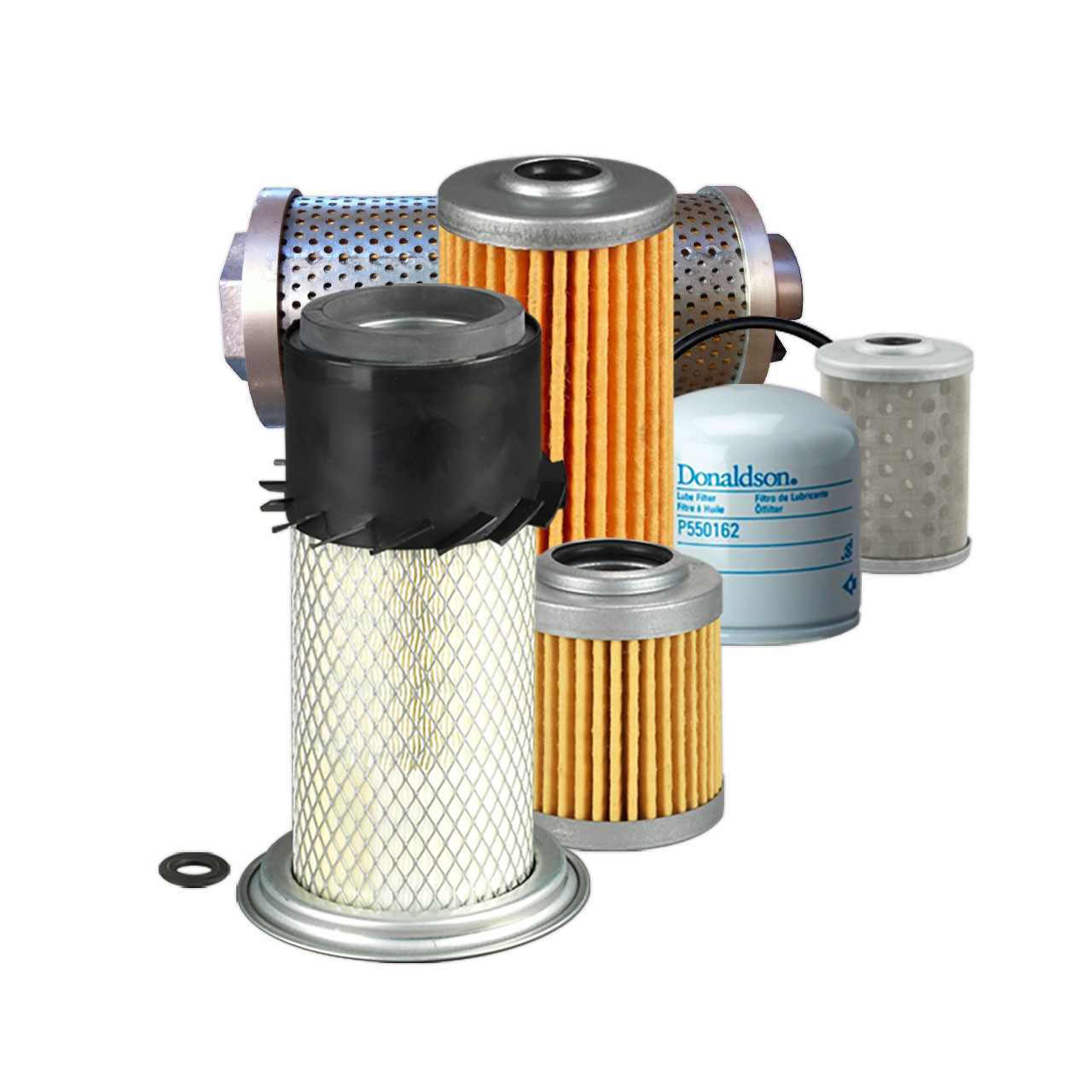

Western Filters only sells filters of the highest quality and only include reputable brands - the industry's best including; Baldwin, Briggs and Stratton, Donaldson, Fleetguard, Fuel Manager, K&N, Mann, Parker Racor, Sakura, Wesfil Cooper. **Please note: Kit photo is a representation only and may not match actual items. If you are unsure that this is the correct kit for your vehicle, please contact us for confirmation. We'll get back to you ASAP, usually within 24hrs on business days.
